1 分析需求

画出心形并放大缩小模拟跳动

心形外部围绕一圈粒子

内部粒子随机分布,越靠近外部边缘的粒子越明显,跳动幅度越大

2 先画一个跳动的心

2.1 设置画布

1
2
3
4
5
6
7
8
9
const canvas = document.createElement('canvas');
const width = window.innerWidth;
const height = window.innerHeight;
document.body.append(canvas);
const ctx = canvas.getContext('2d');
ctx.strokeStyle = '#EEAEEE'
ctx.fillStyle = '#EEAEEE'
//将画笔移动到画布中央
ctx.translate(width / 2,height / 2);

2.2 先画个心形

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
function calX(p){
  return 16*16*Math.pow(Math.sin(p),3);
  }

function calY(p){
  return -16*(13*Math.cos(p)-5*Math.cos(2*p)-2*Math.cos(3*p)-Math.cos(4*p))
}

function draw(ctx){
    let radian_cal = 0 ;
    let radian_add = Math.PI/180;
    let x,y;
    ctx.beginPath();
    ctx.moveTo(calX(radian_cal),calY(radian_cal))
    while ( radian_cal <= 2*Math.PI ){
        radian_cal += radian_add;
        x = calX(radian_cal);
        y = calY(radian_cal);
        ctx.lineTo(x,y);
        ctx.stroke()
    }
}

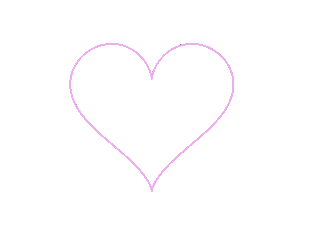

然后调用draw方法 得到一个心形heart_static.png

但此时并不会动, 我们让它动起来

2.3 加入动画

将计算坐标的函数改一下

1
2
3
4
5
6
function calX(p,size){
    return size*16*Math.pow(Math.sin(p),3);
}
function calY(p,size){
    return -size*(13*Math.cos(p)-5*Math.cos(2*p)-2*Math.cos(3*p)-Math.cos(4*p))
}

此时我们就可以在每次刷新时，通过传入不同的size来控制变大变小。

size需要在一定区间内不断加减,所以将size抽离 放在动画中计算大小。

为了灵活控制 额外定义三个变量

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
  //初始大小
let initSize = 16;
//最大大小
let maxSize = 18;
//当前变化的大小
let changeSize = initSize;
//当前是变大还是变小
let isadd = true;
//停顿时间
let stop = new Date();
function draw(ctx){
    let radian_cal = 0 ;
    let radian_add = Math.PI/180;
    let x,y;
    ctx.beginPath();
    ctx.moveTo(calX(radian_cal,changeSize),calY(radian_cal,changeSize))
    while ( radian_cal <= 2*Math.PI ){
        radian_cal += radian_add;
        x = calX(radian_cal,changeSize);
        y = calY(radian_cal,changeSize);
        ctx.lineTo(x,y);
        ctx.stroke()
    }
}
function loop(){
    //每次跳动停顿500毫秒
    if (new Date().getTime() - stop.getTime() > 500){
        //清空画布
        ctx.clearRect(-300,-300,width,height)
        //判断是改变状态 变大还是变小
        if (changeSize >= maxSize){
            isadd = false
        } else if (changeSize <= initSize){
            isadd = true;
            //标记完成一次跳动
            stop = new Date();
        }
        if (isadd){changeSize += 0.1}else {changeSize -= 0.1}
        draw(ctx)
    }
    requestAnimationFrame(loop)
}
requestAnimationFrame(loop)

运行代码 此时我们就得到了一个会跳动的心形


2 处理粒子

2.1 生成随机数

由于需要随机生成粒子.将会大量用到随机数,所以开始之前先将生成随机数的方法抽离

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
    /**
 * 返回两个值之间的随机数
 * @param min 最小值
 * @param max 最大值
 * @returns {*} 随机数
 */
function getRandomArbitrary(min, max) {
    return Math.random() * (max - min) + min;
}

/**
 * 返回两个值之间的随机整数
 * @param min 最小值
 * @param max 最大值
 * @returns {*} 随机数
 */
function getRandomInt(min, max) {
    min = Math.ceil(min);
    max = Math.floor(max);
    return Math.floor(Math.random() * (max - min) + min);
}

2.2 准备数据结构

粒子分为外层粒子和内层粒子

外层较为简单，就是围绕心形包裹一圈。内层看似随机分布，实际上靠近边缘的粒子会更亮,并且跳动时幅度也会更大。所有粒子所在位置、亮度、跳动幅度都和心形有关。
所以抽象一个心形类Heart,每个Heart自己处理自己周围的粒子

将粒子抽象为Point类 记录坐标及变化大小

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
//外部扩散系数
const outPointNum = 5
//内部扩散系数
const inPointNum = 8
//粒子类
class Point{
    x = 10;
    y = 10;
    size = 0;
    radian_cal = 0;
    change_size = 0;
}
//心形类
class Heart {
    x = 0;
    y = 0;
    radian_cal = 0;
    //外部扩散
    out_points = [];
    //内部扩散
    in_points = [];

    constructor() {
    }
}

2.3 处理粒子运动逻辑

在Heart中添加build和change方法,加载时先生成心形以及所有粒子坐标,每次刷新调用change变化

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
class Heart {
    x = 0;
    y = 0;
    radian_cal = 0;
    //外部扩散
    out_points = [];
    //内部扩散
    in_points = [];

    constructor() {
    }
    //初始化构建
    build(radian_cal,x,y){
        this.x = x;
        this.y = y;
        this.radian_cal = radian_cal;
        for (let i = 0; i < outPointNum; i++) {
            //外部扩散
            let p = new Point();
            //大小+1
            let outx = calX(this.radian_cal,changeSize + 1);
            let outy = calY(this.radian_cal,changeSize + 1);
            //随机大小
            p.size = getRandomInt(0,2)
            //随机偏移坐标
            p.x = getRandomInt(outx - 10,outx + 10)
            p.y = getRandomInt(outy - 10,outy + 10)
            this.out_points.push(p);
        }
        let r = getRandomInt(0,5);
        for (let i = 0; i < inPointNum; i++) {
            //内部扩散  控制随机坐标概率  要不然分布不均 会有很多在中间
            let randomChangeSize ;
            if ( r % 2 === 0 && i % 2 === 1 ){
                randomChangeSize = getRandomArbitrary(-1,initSize-1);
            }else if (r % 2 === 0 || i % 2===0){
                randomChangeSize = getRandomArbitrary(initSize/5,initSize-1);
            }else if (i % 2 === 0){
                randomChangeSize = getRandomArbitrary(initSize/2,initSize-1);
            }else {
                randomChangeSize = getRandomArbitrary(initSize-5,initSize-1);
            }
            let p = new Point();
            p.x = calX(radian_cal,randomChangeSize);
            p.y = calY(radian_cal,randomChangeSize);
            p.size = 1;
            p.radian_cal = radian_cal;
            p.change_size = randomChangeSize;
            this.in_points.push(p);
        }
    }
    //每次变化偏移计算
    change(){
        let diffx = calX(this.radian_cal,changeSize)
        let diffy = calY(this.radian_cal,changeSize)
        //计算便宜差值
        let dx = diffx - this.x
        let dy = diffy - this.y
        this.y = diffy ;
        this.x = diffx ;
        for (let i = 0; i < this.out_points.length; i++) {
            //外部扩散直接加偏移量
            this.out_points[i].x = this.out_points[i].x + dx
            this.out_points[i].y = this.out_points[i].y + dy
            ctx.fillRect(this.out_points[i].x,this.out_points[i].y,this.out_points[i].size,this.out_points[i].size);
        }
        for (let i = 0; i < this.in_points.length; i++) {
            //内部扩散 计算差值比例 保证外面的更大
            let initDuffSize = initSize - this.in_points[i].change_size
            let currDuffSize = changeSize - this.in_points[i].change_size
            let inChangeSize = this.in_points[i].change_size + (currDuffSize / initDuffSize)
            let diffx = calX(this.in_points[i].radian_cal,inChangeSize )
            let diffy = calY(this.in_points[i].radian_cal,inChangeSize)
            let dx = diffx - this.in_points[i].x
            let dy = diffy - this.in_points[i].y
            let luminance = inChangeSize/ 10 + changeSize / 20
            ctx.fillRect(this.in_points[i].x +dx,this.in_points[i].y+dy,luminance,luminance);
        }
    }
}

const heartList = []
//初始化所有坐标
while ( radian_cal <= 2*Math.PI ){
    radian_cal += radian_add;
    let x = calX(radian_cal,initSize);
    let y = calY(radian_cal,initSize);
    let p = new Heart();
    p.build(radian_cal,x,y)
    heartList.push(p)
}

将loop方法中调用draw 改为

1
2
3
for (let i = 0; i < heartList.length; i++) {
    heartList[i].change();
}

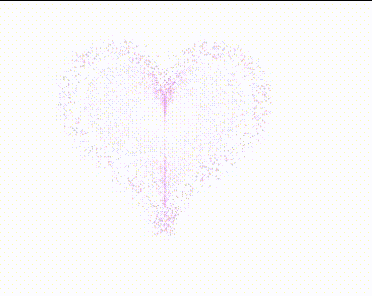

再次运行,此时我们将得到跳动的心形粒子


3 最后的处理

3.1 将背景改为黑色

1
2
3
4
5
6
7
<style>
    canvas{
        background-color: #000000;
        display: block;
        margin: 0 auto;
    }
</style>

3.2 在loop中画出心形

1
2
3
4
5
6
ctx.beginPath()
for (let i = 0; i < heartList.length; i++) {
    ctx.lineTo(heartList[i].x,heartList[i].y)
}
ctx.stroke()
ctx.closePath()

3.3 补上心形中间的直线

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
function line(){
    let minX = 0;
    let minY = 0;
    let tempX = 0;
    let tempY = 0;
    for (let i = 0; i < heartList.length; i++) {
        if ( minY < heartList[i].y){
            minY = heartList[i].y
            minX = heartList[i].x;
        }
        tempX = heartList[i].x;
        tempY = heartList[i].y;
    }
    ctx.beginPath()
    ctx.moveTo(tempX,tempY)
    ctx.lineTo(minX,minY)
    ctx.stroke()
    ctx.closePath()
}

4 完结

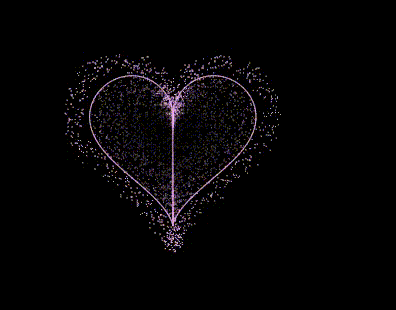

至此 大功告成 点击以下链接看看效果吧~

https://www.yfniubi.club/html/heart.html
